BMW M4 Exhaust

The f82/f83 M4, with a 3.0l twin turbo, inline 6 cylinder engine producing from 425 to 493hp, is a worthy successor to the M3 legacy.As with all turbo induction engines, the potential to improve the sound, and power response through exhaust tuning is substantial!

The Sound

Replacement of the stock 600cpsi catalysts, with either high flow HJS cores, or de-cat pipes, opens up the sound significantly, as well as drastically improving turbo spool for increased power, and reduced spool time. This coupled with the twin 70mm dual oversized down pipes, allows the engine to reach its full potential.

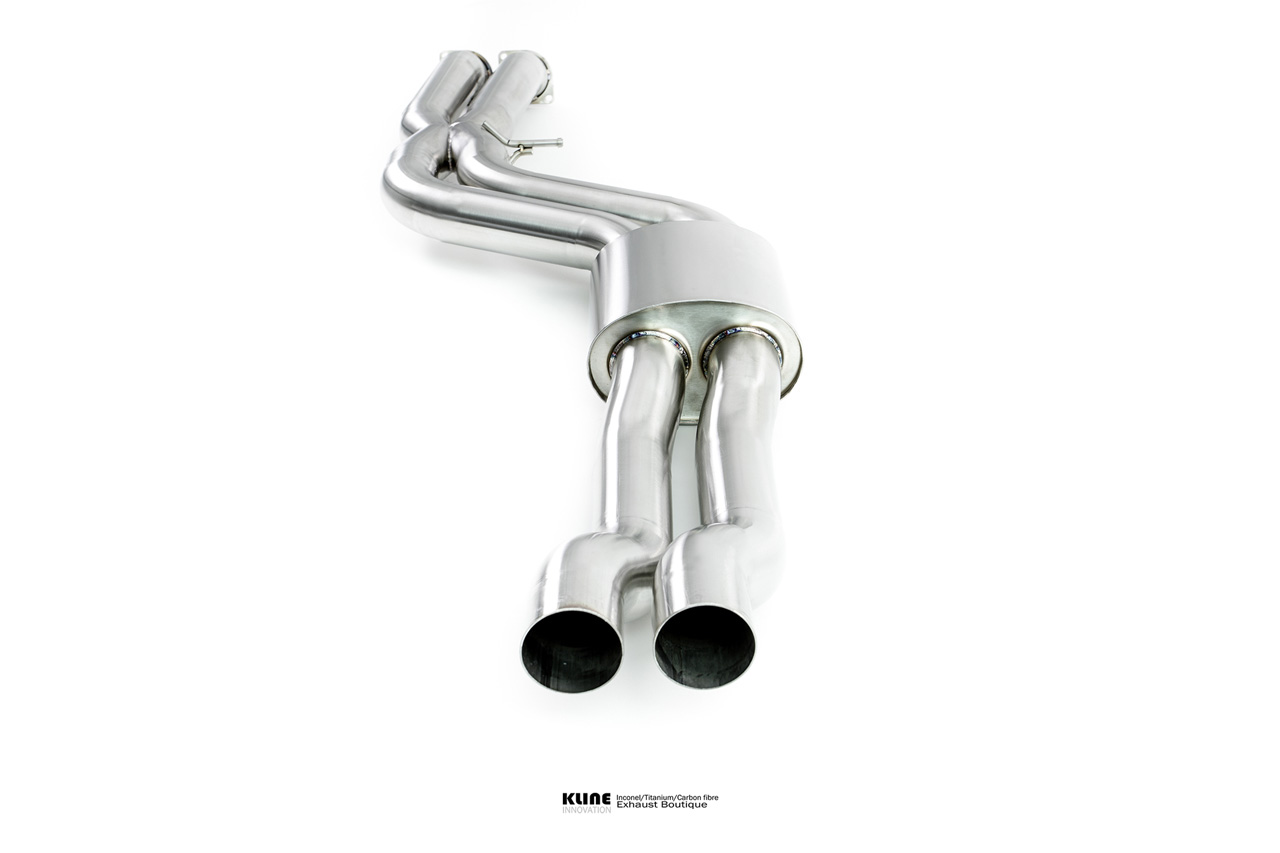

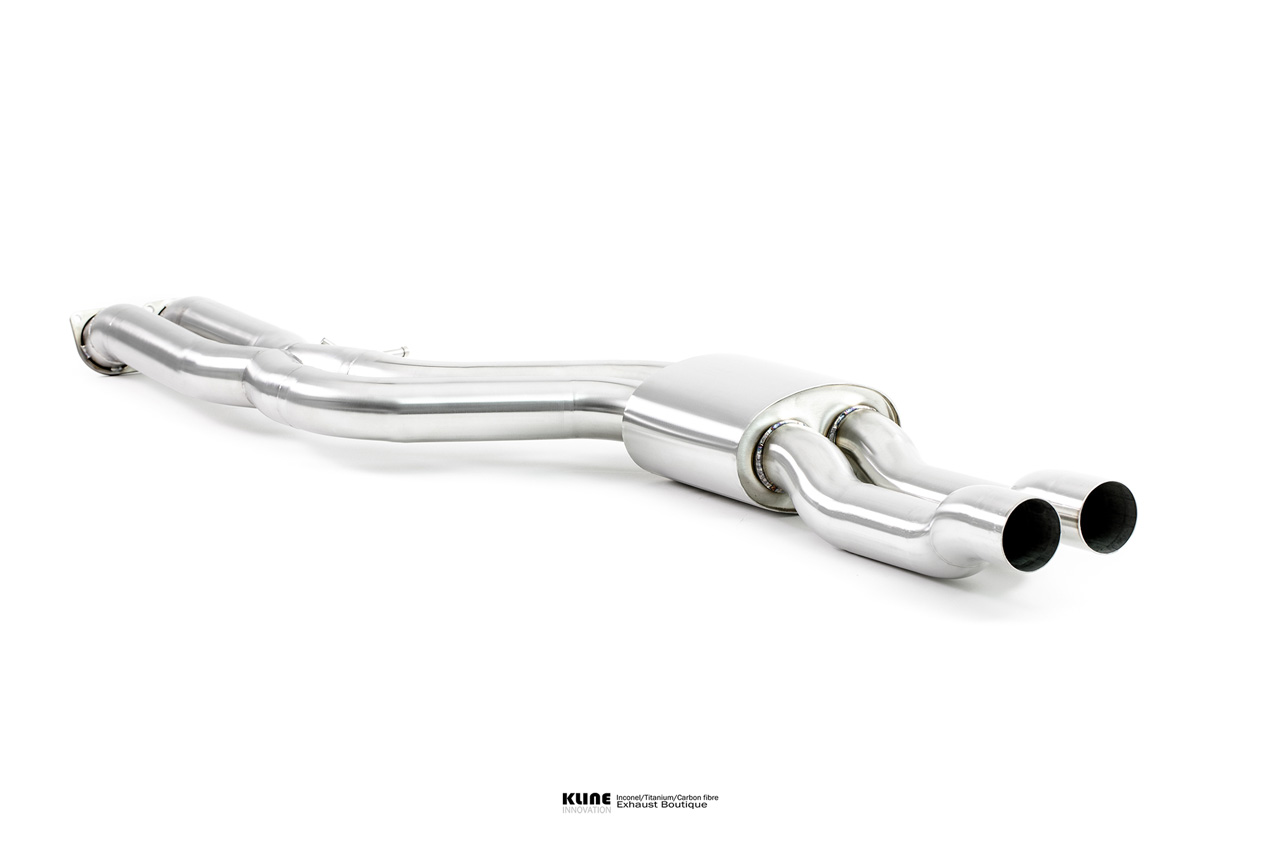

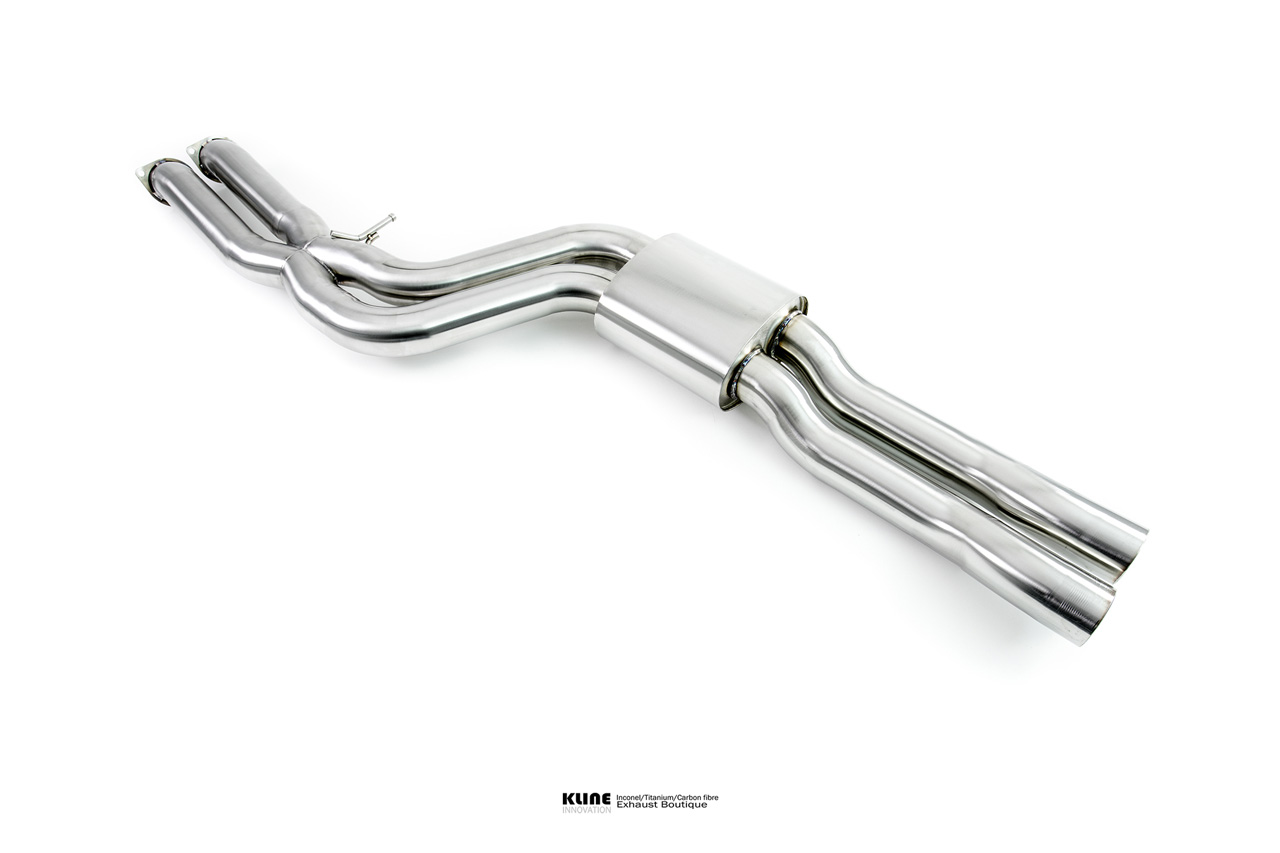

The addition of a 20 degree x pipe to the center section, raises the pitch of the exhaust, complementing the inline 6 scream, with a more visceral sonic experience. we also offer the option of a resonated (silenced) or non-resonated center section, to suit sound requirements.

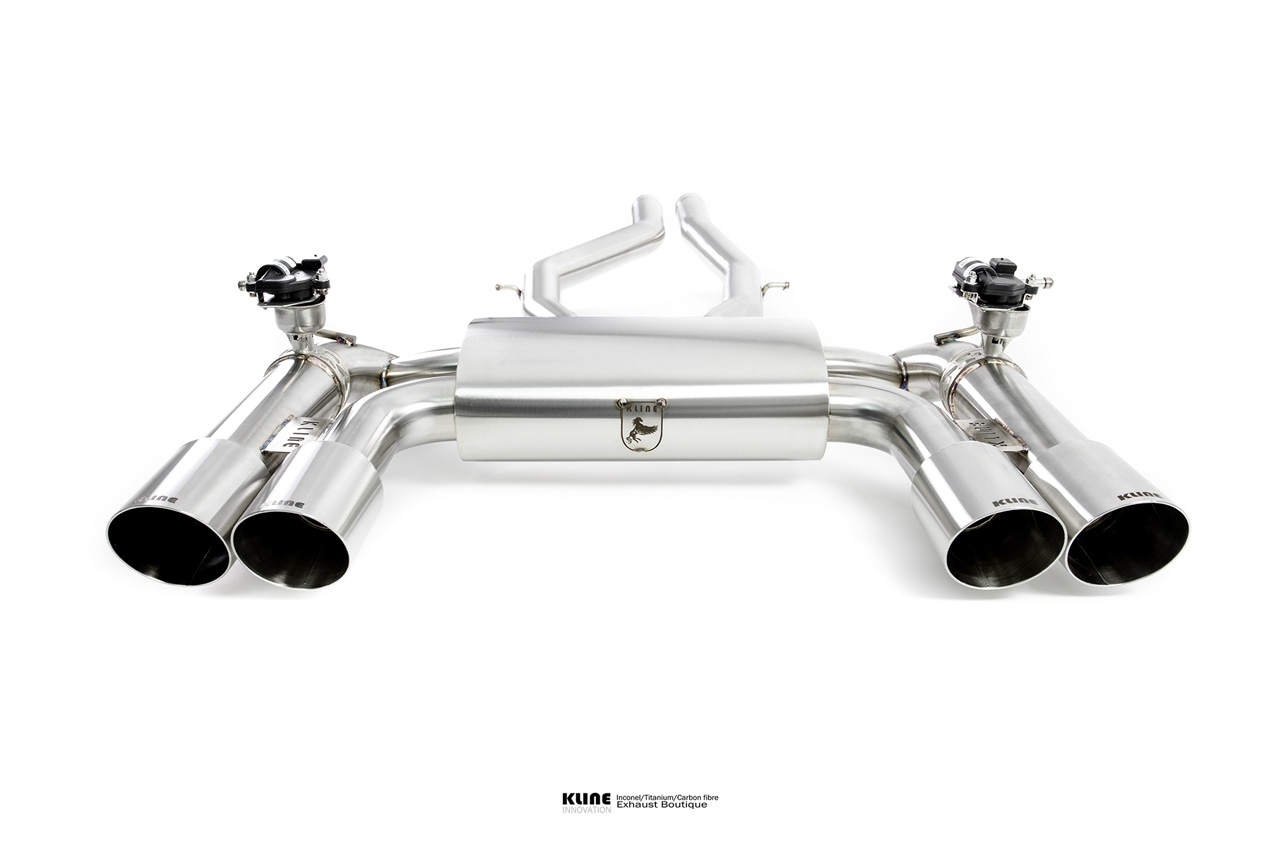

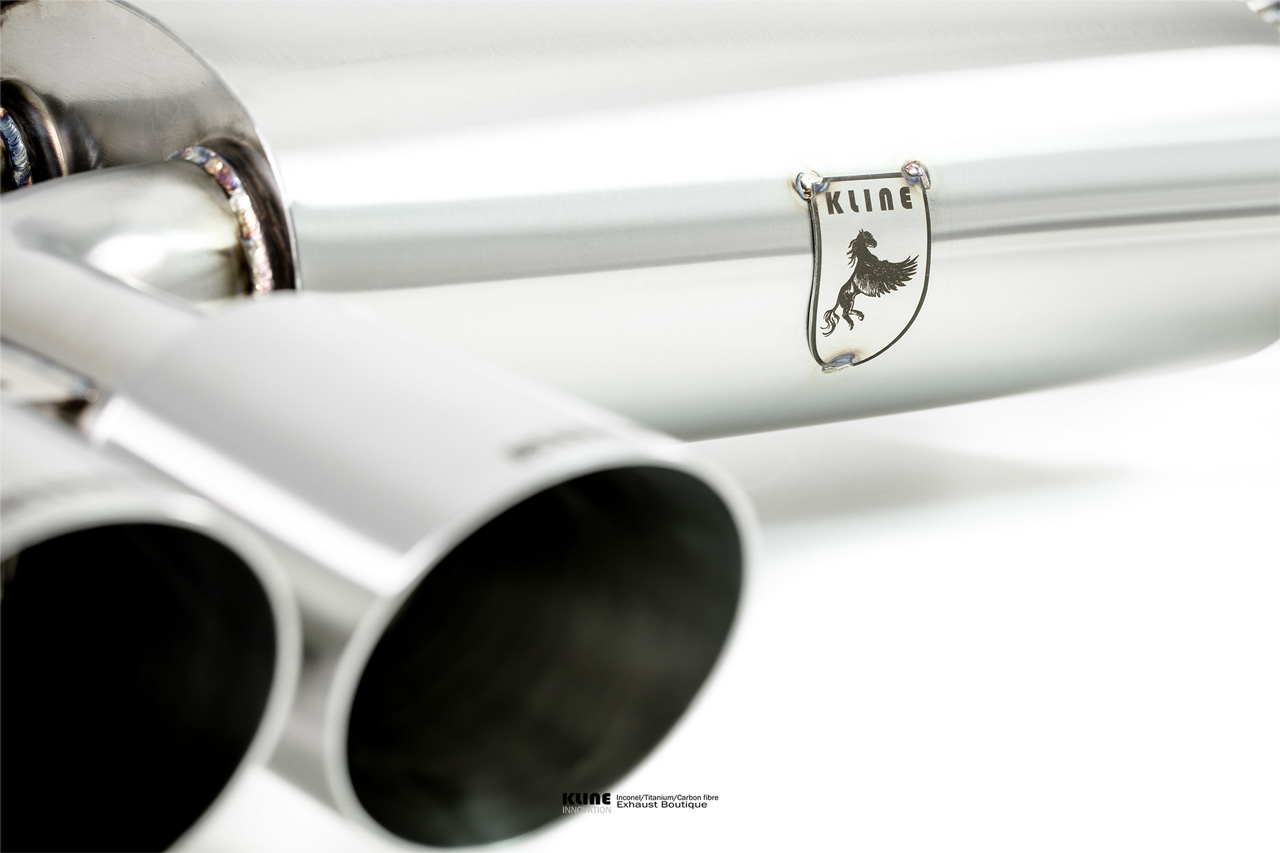

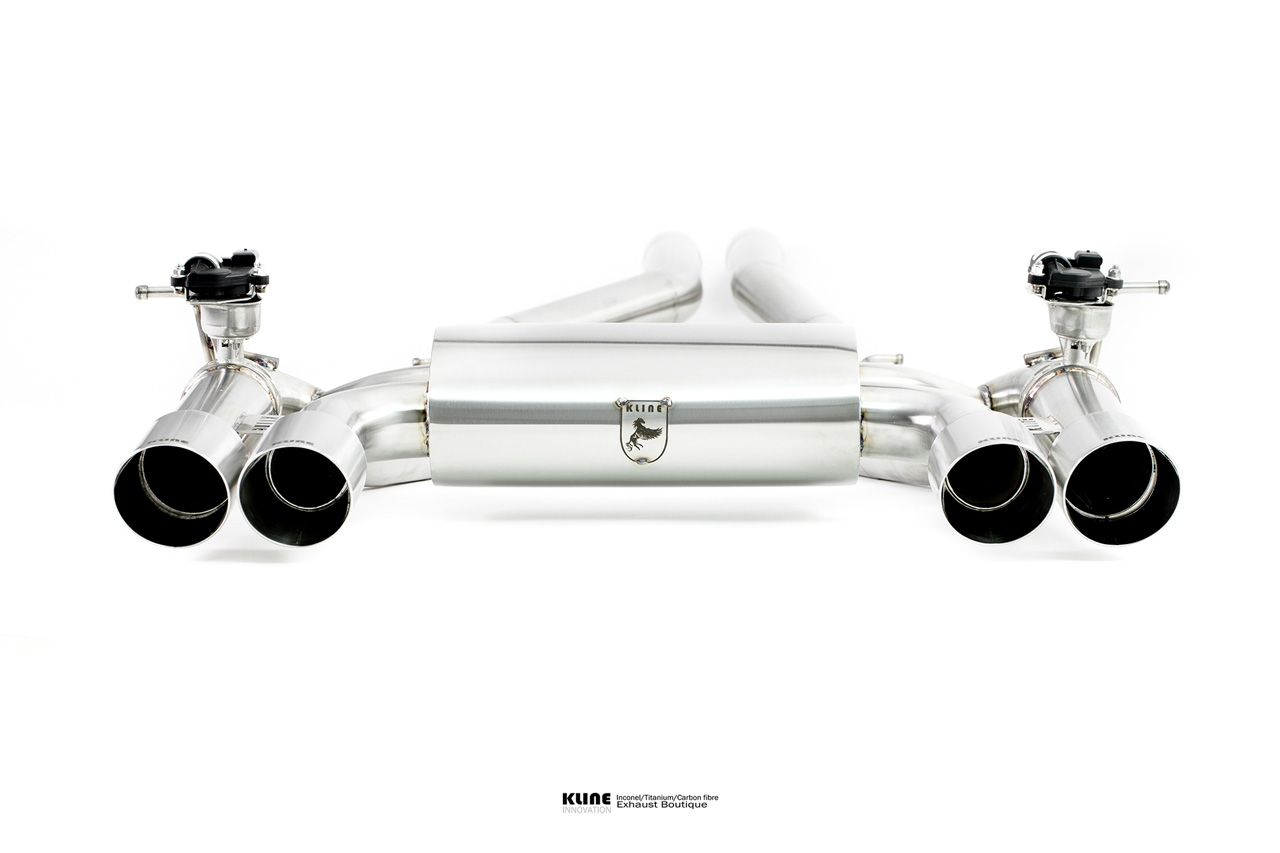

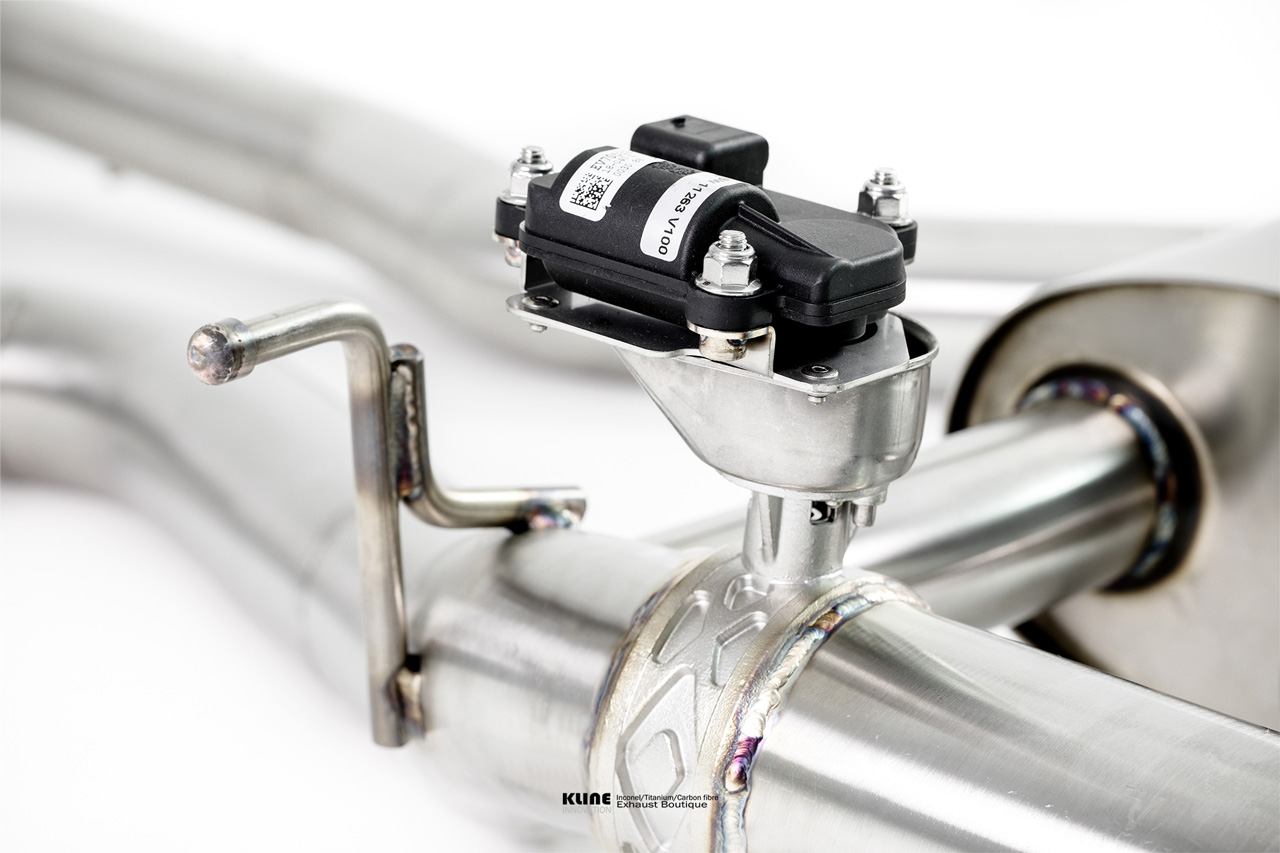

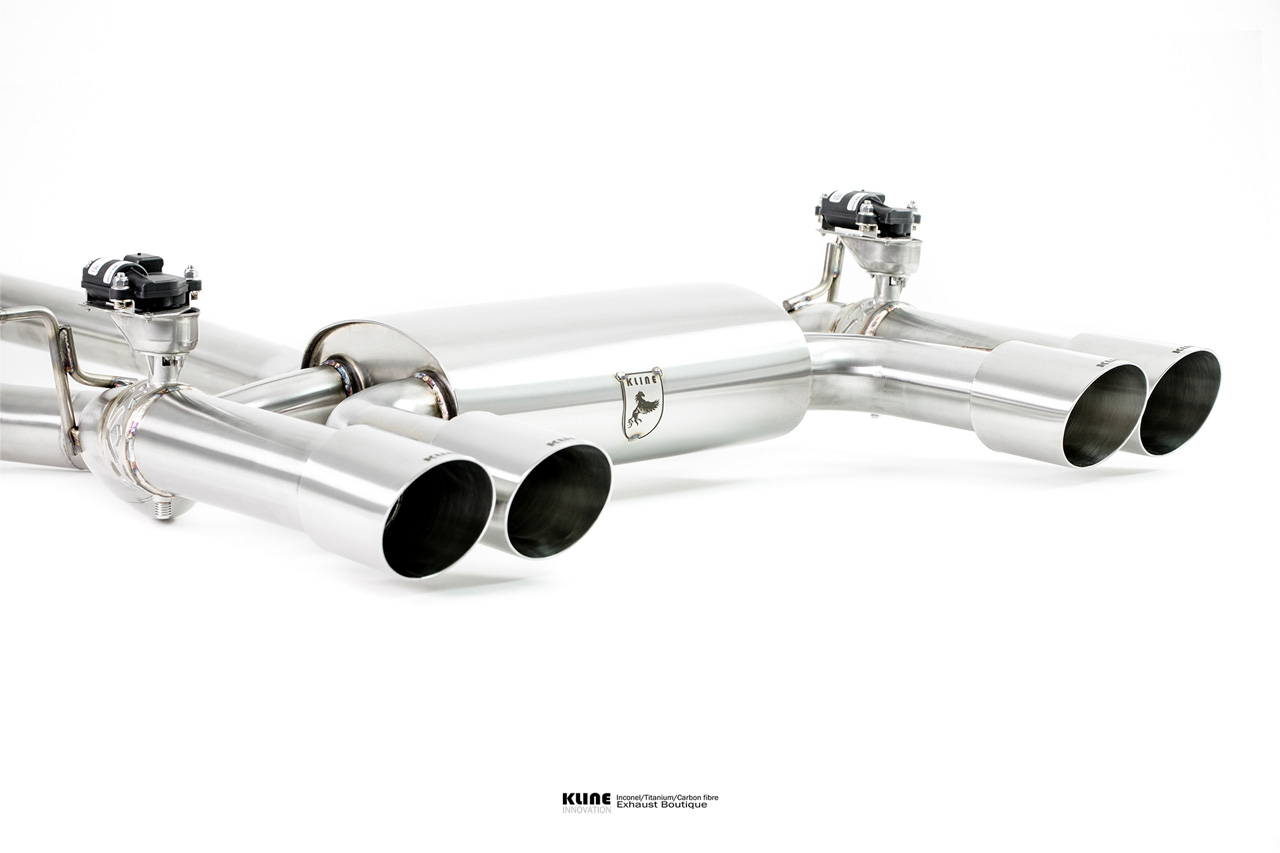

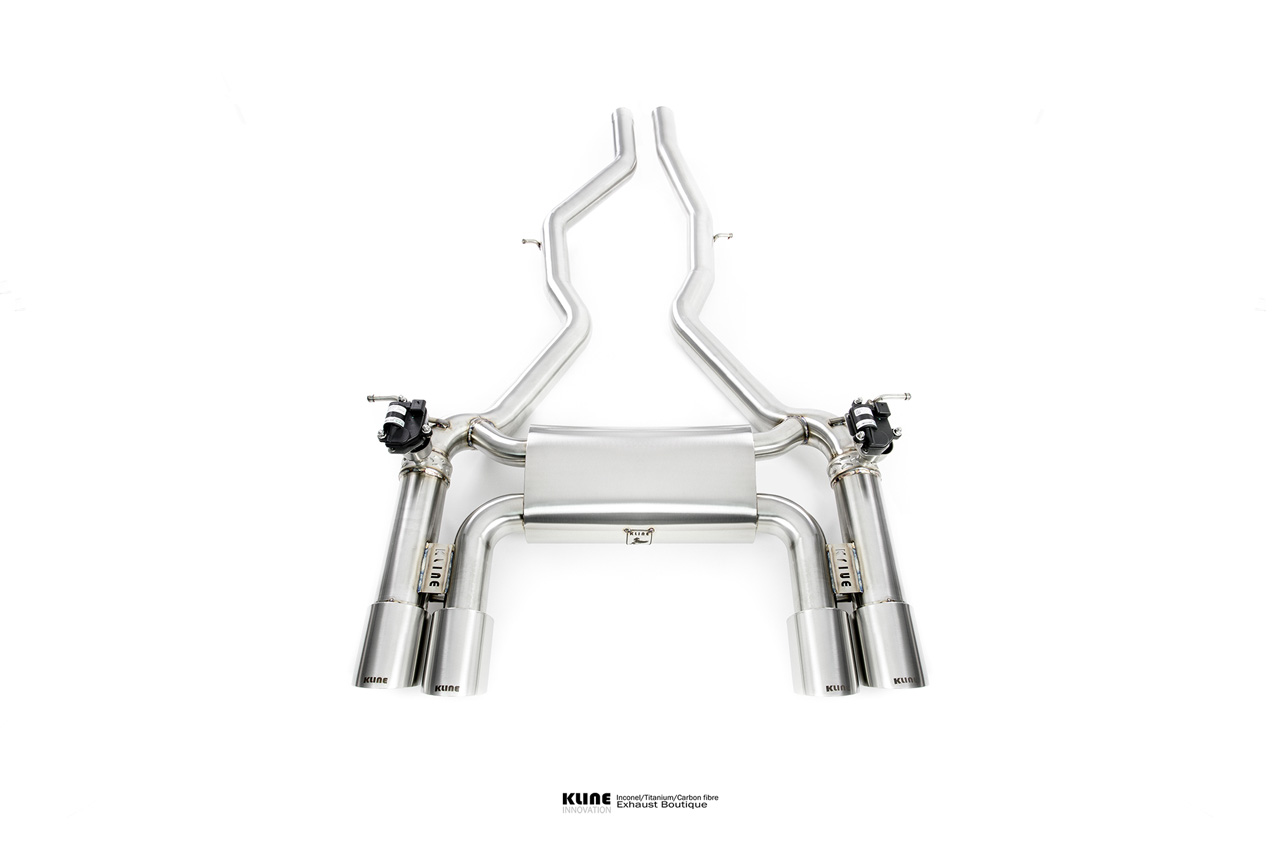

The rear silencer section, working with the cars stock electronic actuated valve system, becomes completely freeflow on valve open, bypassing the silencer for optimum performance, and aggressive sound. under valve closure, exhaust gases are diverted through a series of chambers and acoustic filled section, tuned towards low rpm torque, and a very quiet volume at cruising speeds.

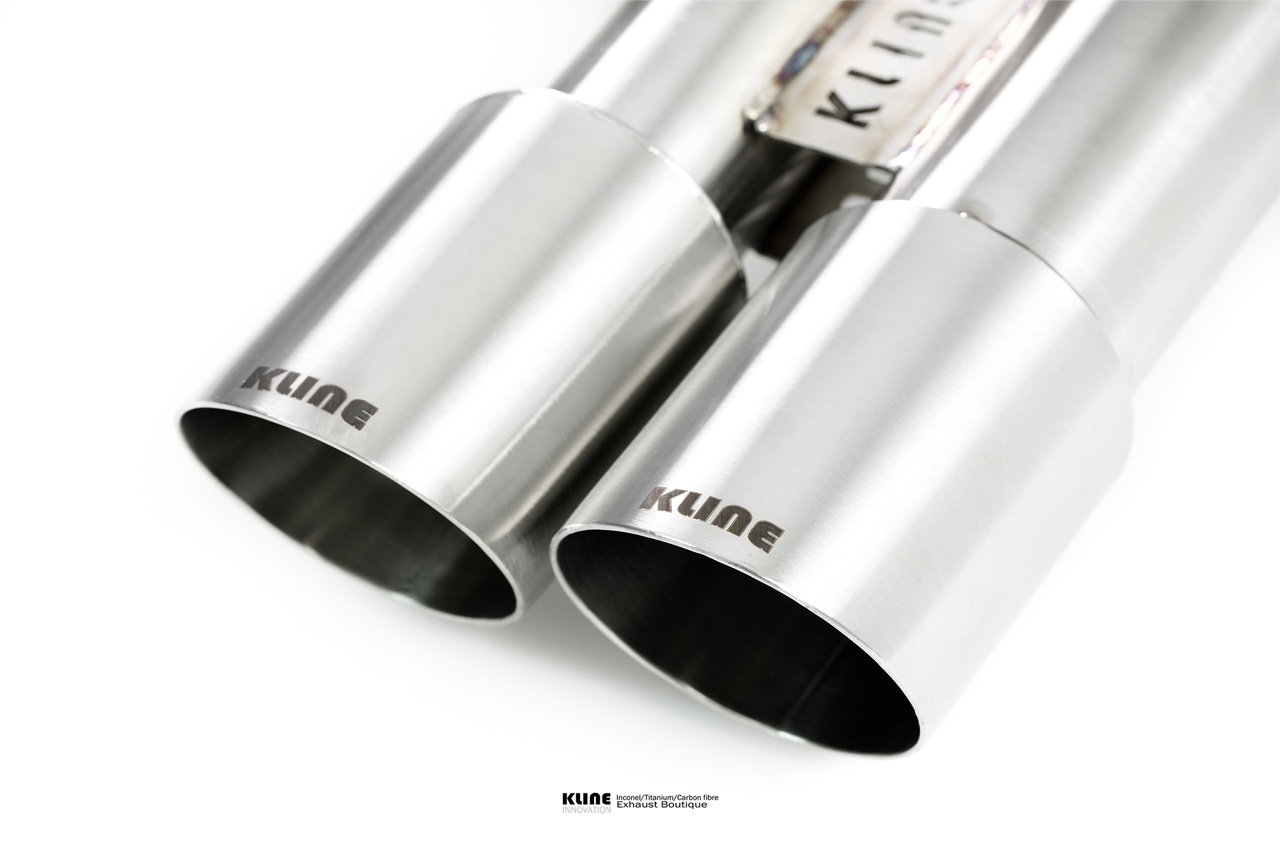

The rear section is finished off with a set of either, F1 grade pre preg, carbon fiber, or Inconel double walled tails.

THE SPECIFICS

Cross Sections

Downpipes and center, 70mmOD dual.

Rear section, 70mm dual pipe (valve open), dual 57mm (valve closed), chosen for a balance of fast turbo spool, torque, and peak power.

Materials

Available in standard 304 grade stainless steel
Inconel 625 formula one grade material

Catalysts

HJS HDPE motorsport 100 cell, or 200 cell catalysts available, or de-cat pipes for optimum performance and sound
